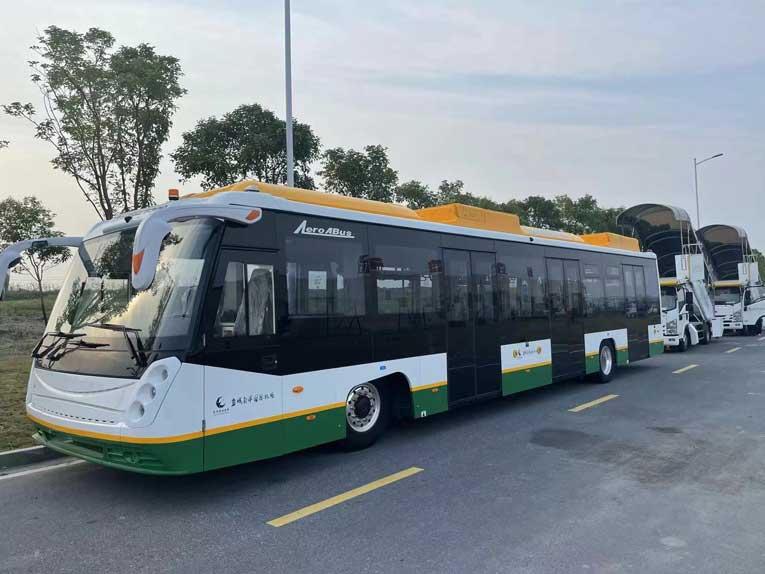

Tianyi TY-B6300 Airport Shuttle Bus | |
Main Performance parameters and recommended configuration table of Jiangsu Tianyi TY-B6300 Airport Shuttle Bus 1) Vehicle body dimensions: The vehicle body is 14,100mm in length, 3000mm in width, and 3078mm in height (including air conditioning). 2) Wheelbase: 7100mm, front overhang: 3150mm, rear overhang: 3850mm, front track: 2020mm, rear track: 2203mm. 3) The curb weight of the entire vehicle is 12,800 kg, the rated load capacity is 8,800 kg, and the total mass is 21,600 kg. 4) The effective standing area of the passenger zone is 24 square meters. The number of seats (driver's cabin/passenger zone) is 2/14, and the maximum passenger capacity is 112. 5) Approach Angle: 7.5°, departure Angle: 5°, minimum ground clearance: 127mm, maximum speed: 50km/h, minimum turning diameter: 27000mm. 6) The Dongfeng Cummins engine ISD 210 50 has a rated power of 155kw/2500r/min, a maximum torque of 800/1400 Nm/r/min, and a minimum fuel consumption of 195g/kW·h. 8) Allison automatic transmission T270, four forward gears and one reverse gear. The initial speed is 30km/h, the cold braking distance is 7.2 meters, and the minimum speed is 4.8km/h. 9) The engine emissions meet the emission limits of Stage V in GB 20891-2014. Jiangsu Tianyi Aviation Industry Co., Ltd. Factory: No.2 Hang Kong Road High-tech zone, Jianhu county, Yancheng City, Jiangsu Province, P.R.China Shanghai Office: Room 1103, Building 35, No. 1399 Jiasong Middle Road, Qingpu District, Shanghai, China Tel: +86 21 50496068 / +86 21 50496058 / +86 400 9980 919 Mobile: +86 137 -6133 -5725 (As WeChat) +86-134 -7248 -8657 +86-195 -1651 -9903 +86-137 -7424 -8052 E_ mail: joinsun@jstianyi.com.cn airport.gse@jstianyi.com.cn Website: www.tianyi-gse.com  | |
